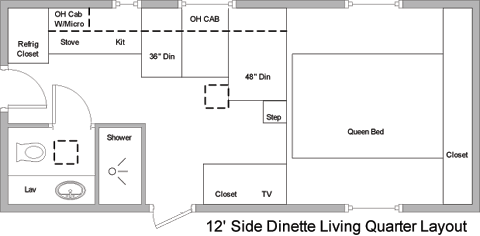

12’ SIDE DINETTE LIVING QUARTERS TRAILERS FLOOR PLAN

This living quarters trailers floor plan features a fold down dinette and full bath room.

Standard Features

Interior Fabric: Mocha

Walls & Ceiling Insulated

White Ceiling

Decorator Wall Board

Propane - Includes: Gas Furnace, Gas Stove Top, Gas Hot Water Tank, Gas Refrig., LP & Co2 Detector, 2-LP Bottles, Stove Hood

3.0 Gas Refrigerator

Microwave

Pass-Thru Door to Cargo Area

6’ Dinette (Folds Down to Bed)

Queen Size Mattress & Spread

Complete Vented Dry Bath includes: Shower with hide-away door, toilet & Vanity

Roof Vent Wired & Framed for A/C

Tinted Windows:

2 - 30" x 22" (1 Egress) Window

1 - 30" x 15" Window

1 - 48" x 22" Dinette Window

Valances & Mini Blinds

Oak Raised Panel Cabinet Doors

Stainless Steel Sink & Faucet

12-Volt on Demand Water System

Formica Counter Tops: Lavatory, Kitchen & Table

4-Door Closet above Bed in Gooseneck

Plush Tan Carpeting on the Riser Wall and Bed Area

Vinyl Flooring

12-Volt Lighting

110V Receptacles

50amp Panel w/Life Line

Battery Box & Converter

Pressurized Hot & Cold water system w/tanks

City Water Hook Up

30-Gallon Fresh Water

30-Gallon Black Water Tank

30-Gallon Gray Water Tank

6 - Gallon Hot Water Tank

RV Step

RV Door w/Screen

Large Grab Handle

Smoke Detector

Fire Extinguisher

Porch Light w/switch
