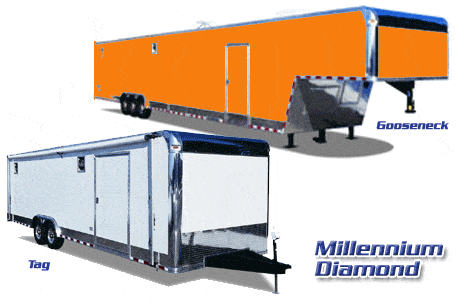

[parag]Millennium Diamond Race Car Trailers: Products built for the most demanding race teams
The Millennium Diamond race car trailers are for those who want our best built unit with the most and best standard features. The winning design & affordability of these race car trailers attract many. These race car trailers sport a brite anodized bull nose front with cast corners, wide brite anodized skirting, heavy duty axles, insulated roof, LED tail lights and more! Customize it with your selected options for a winning look. Call us today for your next race car hauler. Millennium is sure to have the right product and fit for you. Available in sizes 16′ to 53′. These products are perfect for a living quarters conversion. Click this living quarters link to see information about our conversions. Call for race car trailers that are ready for immediate shipment. [/parag]
[parag]The construction, workmanship and materials used to build these car trailers set them apart for our competitors. Utilizing steel box tubing in the walls, these race car trailers will out perform competitor’s trailers who use lesser strength hat post or even Z post steel. The inferior strength of these raw materials will cause them to flex and warp as you travel down the road. Steel box tube will provide a more rigid and stronger wall frame that will withstand longer use without the trailer’s walls warping. Walls and floors are built sixteen inches on center. Lesser car trailers are often built with twenty-four inch on center walls and floors. This can cause a floor failure or accelerated warping of the trailer’s wall structure.[/parag]
[div class=”post_img”]
[cust_img url=”wp-content/uploads/2016/06/DIAMOND_TAG-1.gif” alt=”image”]
[cust_img url=”wp-content/uploads/2016/06/DIAMOND_BACK.gif” alt=”image”]
[cust_img url=”wp-content/uploads/2016/06/DIAMOND_INT.gif”]
[/div]
102″ Wide Body Design
Tags 20′-34′
GN’s 32′-53′
1 pc. Aluminum Roof
.030 Exterior Aluminum
ATP Stone Guard
Beavertail
5,200# Dexter E-Z Lube Torsion Axles
Silver Mod Wheels
Goodyear Radial Tires
82″ between wheel wells
Turn Signals Over Fenders
Roof Vent
Silver Mod Wheels
Ramp Door with Recessed Stainless Steel Flush Lock & 16″ Split Ramp Door Flaps
48″ Side Door with Piano Hinge, Flush Key Lock & Deadbolt
16″ On Center Walls, Ceiling & Floor
1″ x 1 1/2″ Steel Box Tube Construction with Dust Shield
Aluminum Teardrop Fenders
Frame:
Tag – 6″ I-Beam
Gooseneck – 2″ x 8″ x 3/16″ Tubular Main Frame Rails
Z-Tech Undercoating
Polished Cast Aluminum Corners
Brite Anodized Bull-nose front
LED Tail lights
ATP Stepwell
Automotive Style Weather Stripping
48″ Triple Tube Tongue w/Breakaway Kit(On Tags)
Brite Anodized Rear Door Trim
3-Year Factory Warranty
Darco Moisture Barrier
Interior Height 6’6″
Interior Width 96″
White Vinyl Interior Walls
White Vinyl Ceiling with Aluminum Trim
3/4″ Plywood Floor
Insulated Ceiling
Spring Assisted Ramp Door with White ABS Spring Cover
2 – 12V Chrome Dome Lights with Switch
4- D-rings (Loose)
Available in 16 Colors
