Stealth Nomad Toy Hauler

Stealth Nomad Toy Haulers for Sale

There are three ways to start shopping for a Steal Nomad. These trailers are perfect for ATVs, side by sides, motorcycles and cars.

Floor Plans

The Stealth Nomad has 4 floorplans.
  • Front Kitchen(FK)
  • Front Bathroom(FB)
  • Double Bunk(DB)
  • Queen Bed(QB)

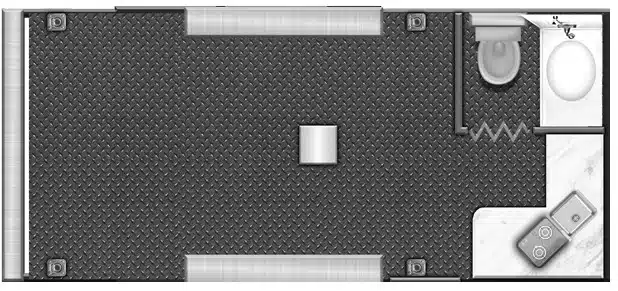

Front Kitchen

The Front Kitchen is the floor plan that allows the most floor space as a toy hauler. This floor plans features the cooktop and sink on the curb side of the trailer and the batrhoom on the road side of the trailer. This floor plan takes up 5 feet of floor space the the available area is between 13 feet and 25 feet depending on the size of the trailer thus prodviding ample storage. This one of the two most popular floor plans.

Stealth Nomad Front Kitchen Floor Plan

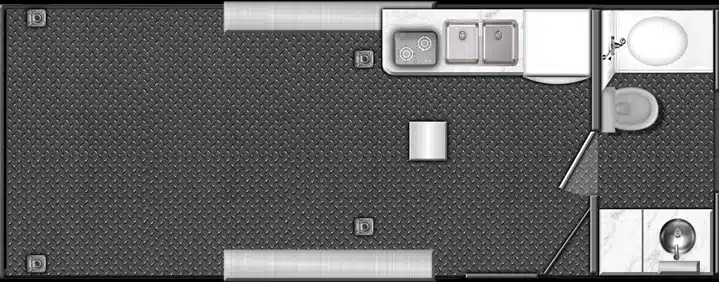

Front Bathroom

Front Bathroom floor plan features a bathroom with a sink and shower that is laid out across the front of the trailer. The kitchen in this trailer is laid out on the road side of the trailer. This floorplan utilizes approximately 10.5 feet of full floor space and the bathroom wall is set approximately 4 feet back thus an additional 6.5 feet of partial floor space is available. This floor plan has a 6 CF refridgerator. THe front Bathroom is also one of the 2 most popular floor plans. The minimum trailer length for this floor plan is 22 feet.

Stealth Nomad Front Bathroom floor plan

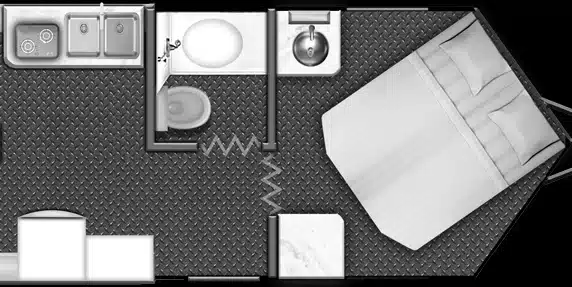

Queen Bed

The Queen Bed floor plan is a queen bed, includes matress, laid out on the road side V-Nose. The bathroom, cooktop and sink are on the road side wall with a 6 CF refridgerator and pantry across from it on the curb side. This floor plan takes 15 feet, 4 inches of full floor space and therefore allows for a maximum of 15 feet, 8 inches of full floor space. The minimum trailer length for this trailer is 26 feet.

Stealth Nomad Queen Bed floor plan.

Double Bunk

THe Double Bunk as two bunk beds in the front of the trailer as well as a bathroom and kitchen. The minum trailer length for this floor plan is 24 feet.

Standard Featires

The Stealth Nomad is rich with standard features. This makes it best value in the toy hauler industry. There are many more features no listed here.

Frame Standard Features

  • 7′ 6″ Interior Height
  • 2″ x 6″ Tube Steel Main Rails (All Models Under 26′ )
  • 2″ x 8″ Tube Steel Main Rails
  • 16″ O/C Floor C-Channel Crossmembers (Under 26′ FK Models)
  • 16″ O/C Floor Steel Tube Crossmembers **
  • 16″ O/C Steel Tube Wall Studs
  • 24″ O/C Tube Steel Roof Bows
  • 18″ Extended Triple Tube A-frame
  • Lippert Torsion Axles
  • 40″ Spread Axles (All Models over 22′)
  • Electric Brakes
  • 2-5/16″ A-Frame Coupler
  • 4,000# Rated Rear Ramp Door w/Flap
  • 5,000# Electric Tongue Jack
  • (2)Roof Vents in Living/Garage area
  • Prep & Wired for A/C
  • 12V Roof Vent in Bathroom
  • Painted Tongue/Rear Sill Black
  • 36″ Slant Wedge
  • Double Fold Out RV Step
  • (1) Pair Rear Stab Jacks

Plumbing Standard Features

  • 46 Gallon Fresh Water Tank (FK Models)
  • 53 Gallon Fresh Water Tanks (DB, FB, QB Models)
  • 43 Gallon Waste Holding Tank (FK Models)
  • (2) 43 Gallon Waste Holding Tanks (1 gray, 1 Black; DB, FB, QB Models)
  • Dual 20lb LP Bottles on A-Frame with Cover
  • 6 Gallon DSI LP Gas / Electric Water Heater
  • 12V Water Pump
  • City/Gravity Water Fill Hook Up
  • Outside Shower
  • RV Toilet
  • Medicine Cabinet
  • Robe Hooks
  • 24″ x 36″ Shower w/Shower Curtain & Surround (FK, FB, QB Models)
  • 32″x 32″ Radius Shower with Door and Surround (DB Model)
  • Drop-In Cook Top
  • Large Single Bowl Kitchen Sink
  • Refrigerator
  • Microwave Oven
  • Tank and Battery Monitor Panel
  • Indoor and Outdoor Showers

Doors and Windows

  • 26″W x 78″H Radius Corner Deluxe RV Door w/Window & Screen
  • Aluminum Door Holdback
  • All Black Zinc Coated Door Hardware
  • 24″W x 72″H Door w/Barlock in Front Storage
  • 30″ x 15″ Window in Kitchen area
  • 30″ x 30″ Window in Living/Garage area
  • 30″ x 22″ Egress Window
  • Window Coverings in Garage Area

Electrical

  • 7-Way Electrical Plug
  • LED Strip Tailights
  • LED Marker Lights
  • 12V Deluxe LED Lighting
  • 45 Amp RV Power Center w/12V Converter
  • 30 Amp Motorbase plug
  • Detachable Twistlock Power Cord
  • Battery Box Only (Battery not included)
  • 110V GFI Receptacle in Kitchen area **
  • (2) 110V Receptacles with USB Ports
  • 110V Receptacle in Garage area **
  • 110V Exterior GFI Receptacle
  • 35K BTU Furnace **
  • TV Prep Package (Includes: Coax Cable Outlets – Interior & Exterior, Omni-directional TV Antenna (UHF/VHF)
  • 12V 40″ LED cove lights in Living/Garage Area **
  • Smoke & CO Detector
  • Fire Extinguisher

Platinum Package

  • Deluxe Stereo Package with Boss-Touchscreen Bluetooth AM/FM/CD/DVD/USB/MP3/WMA Capable Stereo, and (4) Hi-Output Weatherproof Speakers- (2) Interior & (2) Exterior
  • 43″ TV with Swivel Bracket
  • Rear Hide-A-Screen
  • Solar Prep
